Description
Type 1 Surge Protection Device FLP25-275/3S+1
Highlight Features :
- Suitable for Industrial and Commercial Applications
- Efficiently Handles High Surge Currents
- Engineered to Withstand Harsh Environmental Conditions
- Reliable Defense Against Overvoltages in 3 Phase Systems
- 5 Years Warranty
Application：
1、Factory
2、Commercial
3、Office Building
Dimensions
Connection Diagram
Technical Data
| IEC Electrical | ||
| Nominal AC Voltage (50/60Hz) | 230V | |
| Maximum Continuous Operating Voltage | (L – N) Uc | 275 V |
| (N – PE) Uc | 255V | |
| Nominal Discharge Current (8/20 µs) | (L – N) / (N – PE) In | 25 kA / 100 kA |
| Maximum Discharge Current (8/20 µs) | (L – N) / (N – PE) Imax | 100 kA |
| Impulse Discharge Current (10/350 µs) | (L – N) / (N – PE) I imp | 25 kA / 100 kA |
| Specific Energy | (L – N) / (N – PE) W/R | 156 kJ / Ω / 2,5 M kJ / Ω |
| Charge | (L – N) / (N – PE) Q | 12.5 As / 50 As |
| Voltage Protection Level | (L – N) / (N – PE) Up | 1.5 kV / 1.5 kV |
| Follow Current Interrupt Rating | (N – PE) If | 100 ARMS |
| Response Time | (L – N) / (N – PE) tA | < 25 ns / < 100 ns |
| Back-Up Fuse (max) | 315 A gL / gG | |
| Short-Circuit Current Rating (AC) | (L – N) ISCCR | 50 kA |
| TOV Withstand 5s | R (L – N) UT | 335 V |
| TOV 120min | (L – N) UT | 440 V |
| TOV Withstand 200ms | (N – PE) UT | 1200 V |
| Number of Ports | 1 | |
Related Video

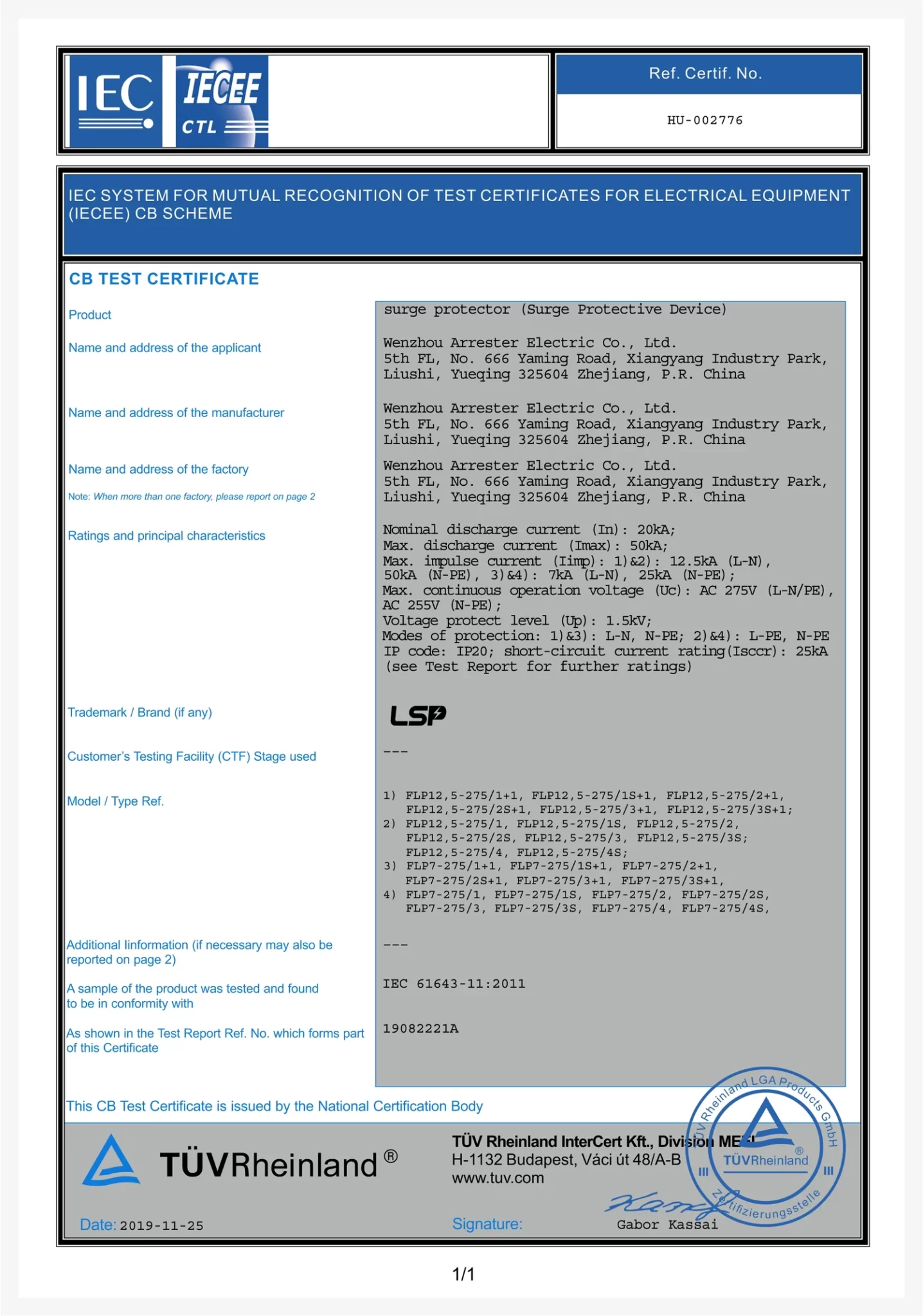

Certified
